Changes in liquid level inside industrial storage tanks can cause pressure buildup or vacuum formation in the tank’s vapor space. During filling, the gas inside the tank must be discharged in a controlled manner, while during emptying, an appropriate amount of air or process gas must enter to replace the discharged liquid volume. If this balance is not maintained, the tank shell, connections, and sealing components may be damaged. A properly selected vacuum relief valve helps protect the tank against negative pressure, particularly during emptying. However, reliable protection requires equipment selection to be evaluated together with tank specifications, flow rates, process conditions, and maintenance requirements.

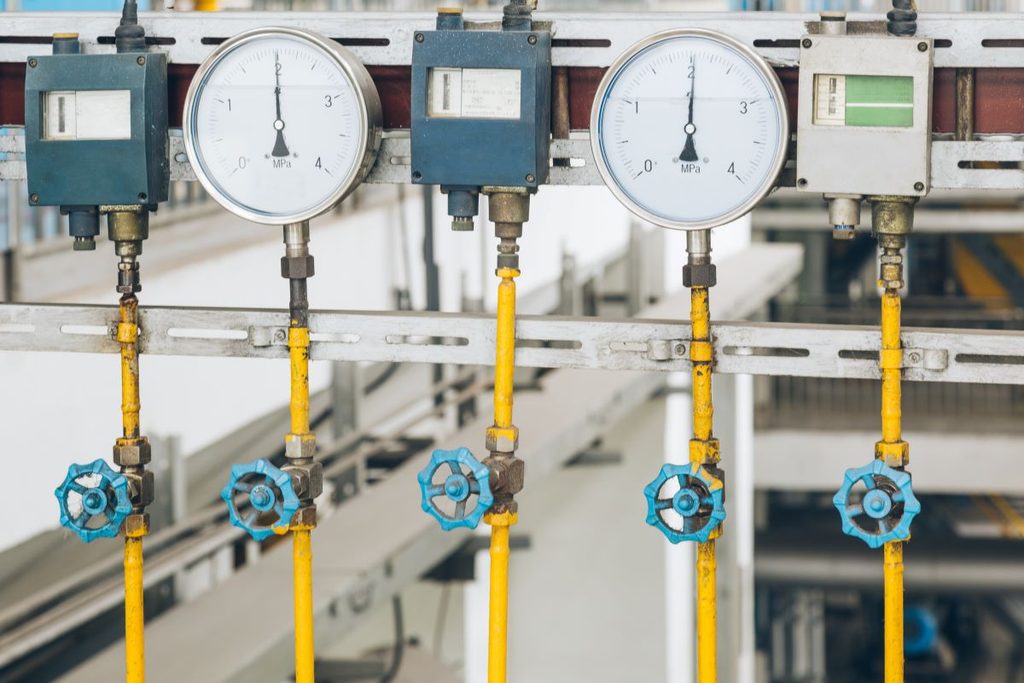

Why Is Pressure Balance Important in Tanks?

Tanks are designed to operate safely within specified pressure and vacuum limits. As the liquid volume inside a tank changes during filling and emptying, the volume of the vapor space also changes. This creates a pressure difference between the inside of the tank and the atmosphere.

If this pressure difference is not kept within the tank’s design limits, deformation of the tank surface, damage to connection points, or loss of sealing integrity may occur. It may also result in process interruptions, product loss, and unplanned maintenance requirements. Pressure balance is therefore essential not only for preserving the physical integrity of the equipment but also for maintaining production continuity and overall plant safety.

An effective protection system should take into account the tank’s design pressure, the properties of the stored fluid, temperature variations, and maximum filling and emptying flow rates.

Why Does Internal Tank Pressure Increase During Filling?

As liquid is transferred into a tank, the liquid level rises and the vapor space in the upper section becomes smaller. If the gas in this space cannot be discharged quickly enough, it becomes compressed and causes the internal tank pressure to rise. The higher the filling rate, the greater the amount of gas that must be released.

Pressure buildup is not caused solely by liquid transfer. A high incoming product temperature, evaporation of volatile substances, and changes in ambient temperature can also affect internal pressure. In atmospheric tanks designed for low-pressure operation, even seemingly minor pressure fluctuations can create significant mechanical loads.

For this reason, the capacity of the vent line and the protective equipment must be assessed according to the maximum filling rate. An insufficient line diameter, blockages in the piping, or incorrectly adjusted equipment may restrict gas discharge.

How Does Negative Pressure Develop During Tank Emptying?

When liquid is withdrawn from a tank, an empty volume is created inside it. If this volume cannot be filled with a sufficient amount of air or suitable process gas, the internal pressure falls below atmospheric pressure. This results in negative pressure, also referred to as a vacuum.

Rapid emptying with high-capacity pumps is one of the main factors that increases the risk of vacuum formation. A closed vent line, contaminated filters, insufficient pipe diameter, or malfunctioning protective equipment may also prevent the required gas from entering the tank.

Rapid cooling can produce a similar effect. Condensation of vapor inside the tank reduces the gas volume and may cause pressure to fall rapidly. The system should therefore be evaluated not only for normal emptying conditions but also for foreseeable temperature changes and abnormal operating scenarios.

How Can Overpressure and Vacuum Damage Tanks?

Excessive internal pressure creates outward stress on the tank wall. If the pressure exceeds the tank’s design limits, it may cause stress in welded areas, leaks at flanges and gaskets, damage to connecting components, and, in severe cases, loss of tank integrity.

Vacuum conditions exert inward force on the tank surface. Tanks with large surface areas that are designed for low-pressure operation may be particularly vulnerable to external pressure. Negative pressure can cause the tank shell to collapse inward, result in permanent deformation, or render the equipment unusable.

Such damage does not always result from a single sudden event. Repeated pressure fluctuations close to the design limits may gradually cause fatigue and sealing problems. Therefore, not only major pressure deviations but also smaller, regularly recurring fluctuations should be monitored.

How Do Tank Venting Systems Work?

Tank venting systems are designed to keep the pressure difference between the inside and outside of the tank within safe limits. They allow gas inside the tank to escape during filling and enable the required amount of air or inert gas to enter during emptying.

The configuration of the system may vary depending on the properties of the stored product and the requirements of the process. Open atmospheric vents, controlled pressure-vacuum equipment, or closed systems using inert gas may be preferred. For flammable, volatile, or environmentally sensitive fluids, the discharged gas may need to be directed to a safe collection or treatment line.

When determining venting capacity, thermal effects must be considered alongside the maximum liquid transfer rate. Pipe length, elbows, filters, and other line components create flow resistance, so the assessment should not be based solely on the connection diameter.

When Is a Vacuum Protection Valve Used?

A vacuum protection valve opens when the internal tank pressure falls below a specified level, allowing air or a suitable gas to enter the system. Once the internal and external pressures are balanced, the valve closes again, helping the tank return to controlled operating conditions.

This equipment becomes particularly important in tanks that are rapidly emptied by pumps, processes where vapor condensation may occur, and applications subject to sudden temperature drops. However, the same capacity and set pressure cannot be used for every tank. The tank’s allowable vacuum limit, emptying rate, gas properties, and pressure losses in the connecting line must all be taken into account.

Selecting equipment based solely on its connection size is not sufficient. The required air intake capacity must be calculated, and the opening set point must be compatible with the tank’s design limits. An unsuitable selection may leave the tank inadequately protected even when protective equipment is installed.

How Should Maintenance and Inspections Be Performed for Safe Pressure Control?

Pressure-balancing equipment may remain inactive for extended periods, but it must operate at the correct set point and provide sufficient capacity when required. Corrosion, sediment buildup, sticky product residues, gasket wear, or seized moving components may negatively affect equipment performance.

During periodic inspections, connection lines, filters, sealing surfaces, and moving components should be examined. The equipment’s opening and closing behavior should be verified, while completed tests and replaced parts should be documented. Maintenance intervals should be determined by considering fluid properties, environmental conditions, process criticality, and previous inspection results.

Kiatork offers valve solutions suitable for various process conditions to support pressure and vacuum control in industrial tanks. Accurate evaluation of tank data, appropriate equipment selection, professional installation, and regular maintenance all contribute to safer, more controlled, and sustainable filling and emptying operations.
